9mm worm hose clamps Admin Edit

MOQ: 5000 Piece/Pieces
Payment Terms: L/C, WU, T/T
Place of Origin: Zhejiang, China (Mainland)
Means of Transport: Ocean
Production Capacity: 80000 Piece/Pieces
Packing: pp bags first , then...
Delivery Date: 30 days
Material: Stainless Steel Structure: Suspension Clamp
Size: 2" to 20" ,or after your demand Usage: Pipe Clamp,joining two pieces of duct hose
Standard or Nonstandard: Standard Packaging Details:: pp bags first , then in cartons ,pallet at last for 9mm bandwidth single and double Bridge Hose Clamp
Delivery Detail:: within 30 days or asap if have stock for double Bridge Hose Clam

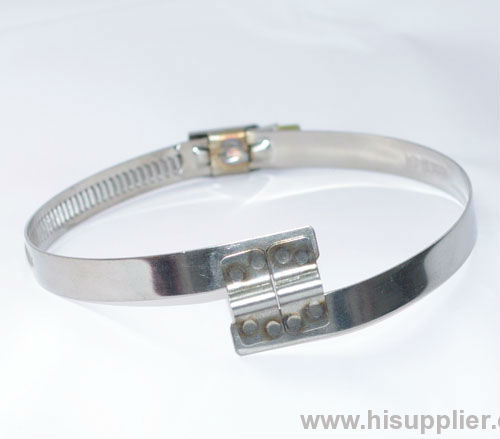

  high quality quick release hose clamp

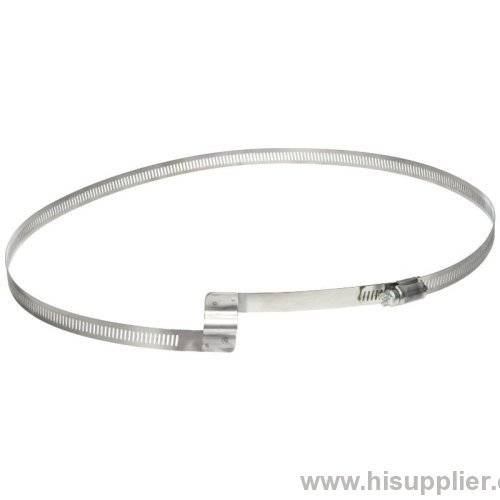

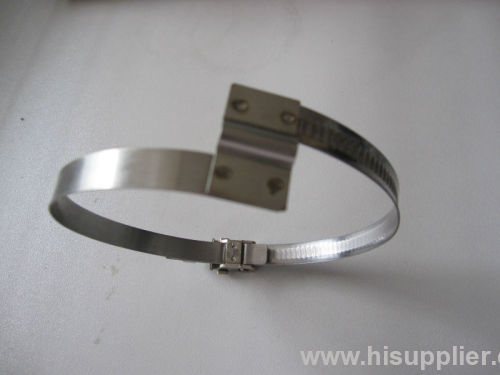

9mm bridge hose clamp




Specifications:
Bridge clamp for joining twopieces of duct hose
Used with Flex-Tube ducthoses
Stainless steel band and weldedstainless steel bridge are resistant to corrosion
Fits over the helix to create aleak-proof seal
Available in clockwise andcounter-clockwise configurations
used for a wide range ofapplications including heating and cooling, ventilation, fume and smoke exhaust,vacuum cleaning, and handling bulk packing materials.
Size: 2" to 20" ,or after yourdemand
clamping sizerange chart
SAE Sizesmin.dia.(in.)max.dia.(in.)min.dia.(mm)max.dia.(mm)
723576127
803-1/25-1/289140
8846102152
964-1/26-1/2114165
10457127178
1165-3/47-3/4146197
1282-1/28-1/264216
1407-1/49-1/4184235
15221051254
164210-3/451273
1769-1/211-1/2241292
188212-1/451311
20811-1/213-1/2292343
22412-1/214-1/2318368
23613-1/415-1/4337387
24821651406
26014-3/416-3/4375425
2641517381432
2801618406457
2961719432483
3121820457508
3281921483533
3442022508559
3602123533584
3762224559610
3922325584635









9mm bridge hose clamp






MainProducts Outline:
1British hose clamps: band thickness isusually about 1 mm, double the thickness of other hose clamps. So the bandtension is very strong. Widely used in larger pressure occasions. With out toothtraces at inner ring of the band can protect the soft surfaceof hoses.
2German hose clamps: the unique sidepressing design, and non-perforated design can effectively prevent the softsurface of the silicone tube and hose from damage.
3.American hoseclamps: with band threadthrough-hole, and teeth of the screw fitted in, they have more powerful locking.and accurate Occlusal. Also,american hose clamps can be used in non-circularobjects, they can bundle the square columnar objects, such as flue, electricvehicle batteries,etc.
4.T bolt hose clamps:similar to theirbrothers ---- the single-head solid strong clamps, both of them belong to thepowerful hose clamps , which also called European clamps. The common bandwidth20MM, 24MM, 26MM,etc., have a larger Strong torque. Widely used in places withstrong fastening force requirements.
5.Vband hose clamps: traditional flangereplacing products. beautiful appearance. cheap. fast and easy installation.high strength, good sealing performance. Pipes are connected with highconcentricity. and easy removal. They can be used as an active connection ofround or oval ducts and pipes which require constant maintenance andactivities.
6.U shape pipeclamps:are used for pipefixing on various surfaces and support structures. U tube clamps is suitable forfixed pipeline with oil, water, gas medium in metallurgy, petroleum, chemicals,vehicles, ships, power hydraulic systems. U pipe clamps under stamping, sheetmetal, galvanized surface treatment , taking shape with "U" style,have a uniqueadvantage of damping, silencers, sound absorption, abrasion etc..
7.Spring-loaded T-bolthose clamps: spiral spring designprevents the occurrence of leakage when temperature changes, and have aself-compensation function (constant pressure). Widely used in truck air intake,cooling ventilation systems. T-spring hoops made of high quality stainless steeland thin band material, provide uniform sealing pressure with special bendingprocess ,forming a completely reliable seal. they are dedicated to theenvironment of vibration and large diameters.
8rubber coated hose clamps: with good flexibility,tensile strength, flame retardant, waterproof, anti-aging, anti-static, hightemperature resistance, corrosion resistance, wear-resistant, anti-UVperformance.
9.Handle/thumb screw hose clamps: simple and easy touse, without any tools. Handle/thumb screw can be plastic coated ornot.
10quick release hose clamps: mainly used in fastconversion, such as sealing of the air duct, dust channel interface. meetsquickly tied needs to enable work very efficient.



9mm bridge hose clamp
