perforated hose hoops with handle

Model: 21
Place of Origin: Zhejiang,China (Mainland)
Brand Name: KINGSUN
hose clamps: hose clamp
Standard or Nonstandard: Nonstandard
Structure: Swivel Clamp
Material:: stainless steel
Band width: 9 and 12mm
Diameter: 8- 400mm

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Payment Terms:L/C, WU, T/D, T/TProduction Capacity:1000000PCS PER MONTH
MOQ:1000 Piece/PiecesPacking:box
Means of Transport:Land, AirDelivery Date:30days

 Specifications:

1) Band width: 9,12mm
2) Diameter: 13 - 400mm
3) Material: stainless steel, carbon steel

Germany Type Hose Clamp with Thumb Screw

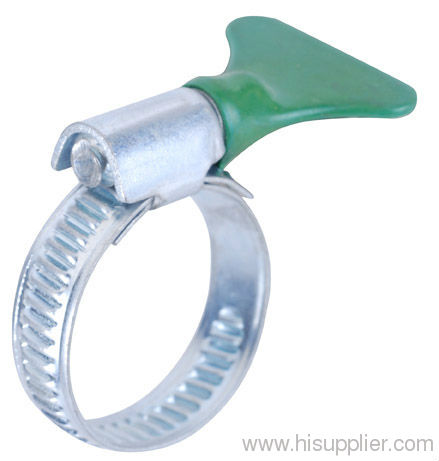

thumb screw American Type Hose Clamp




0.6mm band thickness perforatedstyle pipe clamp with handle screw

Specifications:
1) Band width: 8, 12.7mm
2) Diameter: 8 -400mm
3) Material:stainless steel, carbon steel
4) Suitable for home, automotive andindustrial applications



thumb screw American Type Hose Clamp



thumb screw American Type Hose Clamp



thumb screw American Type Hose Clamp




thumb screw American Type Hose Clamp


Advantages:

1.The outeredge of the band with smoothing and shaping treatment precludes the damage ofthe hose.

2.using highquality material and precise stamping molding, prevents threadstripping.

3.withprecise design, uniform stress, good sealing ability, can be twisted smoothly,and used multiple times.

clamping size rangechart

clampingrange

pcsbox

pcs/carton


bandwidth9mm

bandwidth12mm



8--12

16-25

100

2000


10--16

20-32

100

2000


12--20

25-40

100

1000


16-25

32-40

100

1000


20-32

40-60

100

1000


25-40

50-70

100

1000


32-50

60-80

50

1000


40-60

70-90

50

500


50-70

80-110

50

500


60-80

90-110

50

500


70-90

100-120

25

500


80-110

110-130

25

500


90-110

120-140

25

500


100-120

130-150

25

300


110-130

140-160

10

300


120-140

150-170

10

300


130-150

160-180

10

300


140-160

170-190

10

300


150-170

180-200

10

300


160-180

190-210

10

300


170-190

210-220

10

200


180-200

210-230

10

200


190-210


10

200


200-220


10

200


210-230


10

200


MainProducts Outline:

1British hose clamps: band thickness isusually about 1 mm, double the thickness of other hose clamps. So the bandtension is very strong. Widely used in larger pressure occasions. With out toothtraces at inner ring of the band can protect the soft surface of hoses.

2German hose clamps: the unique sidepressing design, and non-perforated design can effectively prevent the softsurface of the silicone tube and hose from damage.

3.American hoseclamps: with band threadthrough-hole, and teeth of the screw fitted in, they have more powerful locking.and accurate Occlusal. Also,american hose clamps can be used in non-circularobjects, they can bundle the square columnar objects, such as flue, electricvehicle batteries,etc.

4.T bolt hose clamps:similar to theirbrothers ---- the single-head solid strong clamps, both of them belong to thepowerful hose clamps , which also called European clamps. The common bandwidth20MM, 24MM, 26MM,etc., have a larger Strong torque. Widely used in places withstrong fastening force requirements.

5.Vband hose clamps: traditional flangereplacing products. beautiful appearance. cheap. fast and easy installation.high strength, good sealing performance. Pipes are connected with highconcentricity. and easy removal. They can be used as an active connection ofround or oval ducts and pipes which require constant maintenance andactivities.

6.U shape pipeclamps:are used for pipefixing on various surfaces and support structures. U tube clamps is suitable forfixed pipeline with oil, water, gas medium in metallurgy, petroleum, chemicals,vehicles, ships, power hydraulic systems. U pipe clamps under stamping, sheetmetal, galvanized surface treatment , taking shape with "U" style,have a uniqueadvantage of damping, silencers, sound absorption, abrasion etc..

7.Spring-loaded T-bolthose clamps: spiral spring designprevents the occurrence of leakage when temperature changes, and have aself-compensation function (constant pressure). Widely used in truck air intake,cooling ventilation systems. T-spring hoops made of high quality stainless steeland thin band material, provide uniform sealing pressure with special bendingprocess ,forming a completely reliable seal. they are dedicated to theenvironment of vibration and large diameters.

8rubber coated hose clamps: with good flexibility,tensile strength, flame retardant, waterproof, anti-aging, anti-static, hightemperature resistance, corrosion resistance, wear-resistant, anti-UVperformance.

9.Handle/thumb screw hose clamps: simple and easy touse, without any tools. Handle/thumb screw can be plastic coated ornot.

10quick release hose clamps: mainly used in fastconversion, such as sealing of the air duct, dust channel interface. meetsquickly tied needs to enable work very efficient.
