These 316 SS non-perforated hose clamps clamps are specially designed for use with soft silicone and rubber hose applications making them ideally suited for radiator hose applications.
All stainless steel construction provides an excellent level of corrosion resistance that suits under bonnet applications at an affordable price.
Product Description
316 SS non-perforated hose clamps - 11.7mm band width:Box of 10 clamps,support customer customization. Hex. head screw: 7mm width for both band width hose clamps.
● Band width: 9.7mm & 11.7mm are available
● Band thickness: 0.8mm for 9.7mm band / 0.9mm for 11.7mm band
● Hex. head screw: 7mm width for both band width hose clamps
● Under RoHS & REACH standard, No chromium(VI) used for coating purposes
● Installation Torque:
● 9.7mm band width hose clamps: The recommended installation torque is 3.5 Nm (31 in-lbs).
● 11.7mm band width hose clamps: The recommended installation torque is:

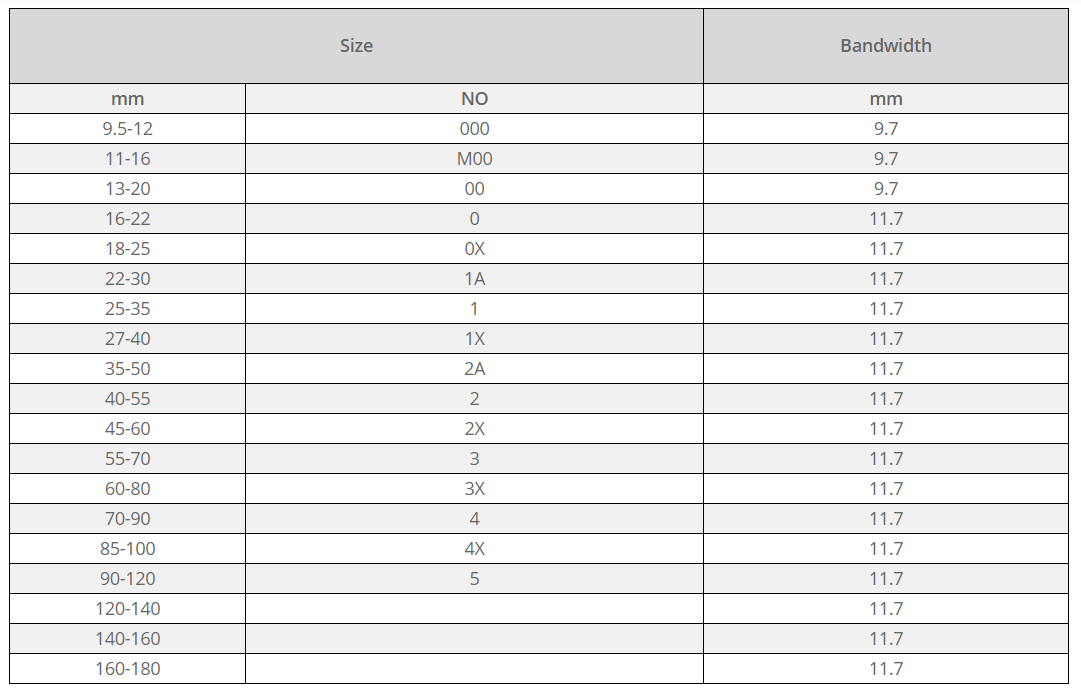

Size List
Material
W1 : All in carbon steel with zinc plated
W4: All in SS304
W5: All in SS316

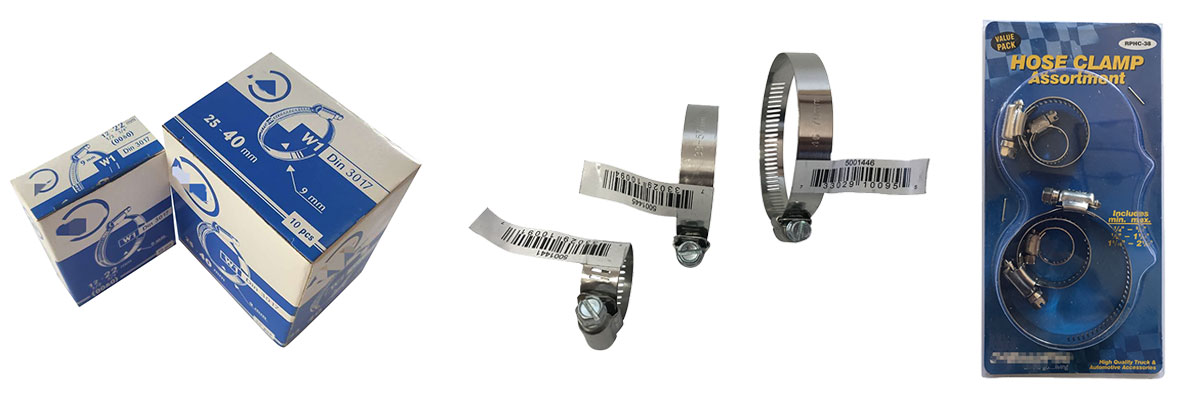

Packaging
Available in bulk packaging, pack of 10, blister card packaging, polybag packaging, tag packaging, and customer designed packaging.
