Drive Constant Tension Clamps

They are much more substantial and supposed to be a lot better. Super simple upgrade!
360 degree sealing, suitable for all types of hoses. Fast installation.
The adjustment screw provides constant torque.

Product Description

Drive Constant Tension Clamps


Saddle with additional housing parts. It is guaranteed that it can be clamped by force in 360 degrees. There will be no distortion and undulation of the shell. The risk of separation at the seam is eliminated. The high-quality stainless steel dismantling provides a higher strength of fastening force.

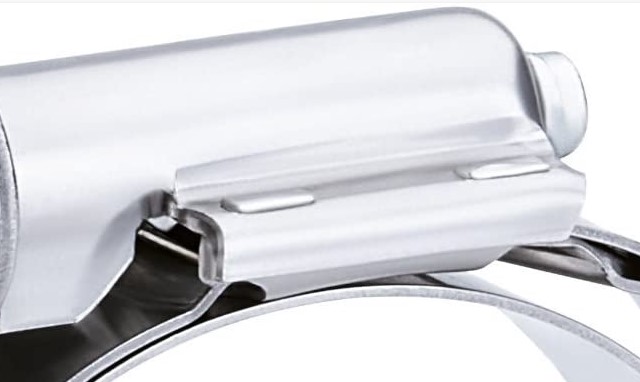

Saddle with additional housing parts


The screws use high-quality stainless steel hexagonal screws, which can provide better grip. The adjustment screw provides constant torque.


The inside of the steel belt is smooth with holes, which will not cut and soften while increasing the tightening force.

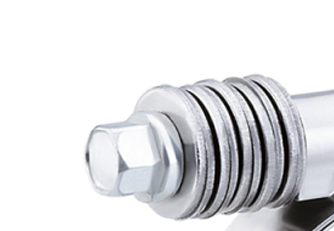

head screw


The unique belleville washer design eliminates "cold flow" leakage. The stainless steel belleville washer design allows the constant torque fixture to automatically increase or decrease its own diameter according to changes in operation or ambient temperature.


The band of the drive constant tension clamps can be pulled out. They can be easily fixed in place. It can be done with a screwdriver or power tool. Around very narrow pipes, everything is very crowded, and it is difficult to use pliers to tighten hose clamps. But socket and spanner can be put in easily.


Compared with spring hose clamps, you can put them in the correct position very slowly. When you tighten, you can tighten as needed. It becomes very convenient, even in places that are difficult to reach.

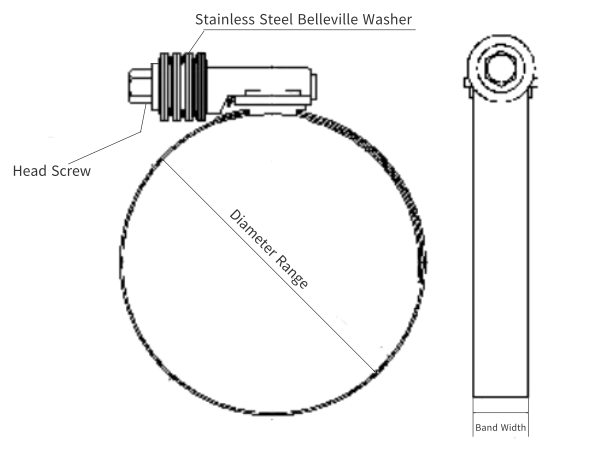

Drive Constant Tension Clamps


● Band width: 9/16”(14.2mm), 5/8”(15.8mm)

● Band thickness: 0.024” (0.6mm)

● Hex. head screw: 5/16” (7.9mm) width

● SAE J1508 Standard

● Under RoHS & REACH standard


The housing, washers and screws can be made of 301, 302, 304, 410 grade stainless steel, which has good corrosion resistance. In addition, galvanized stainless steel can be used, and other material combinations can be provided upon request.
